產品介紹
特性：
．Input Range:115VAC/230VAC Input Frequency: 47～63Hz
．Dimension: PS/2 specification.Inrush Current : 80A Max.@cold start
．Passivity PFC.Leakage current: 0.75mA max.@264Vac input
．Total Power:450W

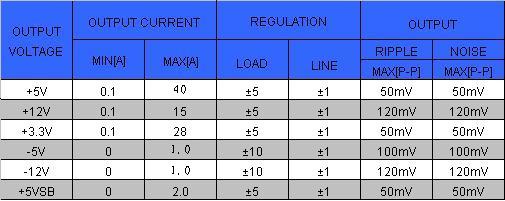

系統規格：
·450W 6 outputs ,AC passivity PFC Input design
·Meet Intel ATX 2.01/ATX 2.03/ATX 12V/EPS
·Operating temperature range from 0℃ to 50℃？？？
·Build in DC remote ON/OFF, PG/PF TTL signal
·Build in long life ball bearing fan
·Build in thermal fan speed for noisy reduction
·Complies with FCC class B,Cispr Pub.22,EN55022 CLASS B and CE？ requirements
·MTBF 100KHRS @ 25℃ per MIL-HDBK-217F
·3 years manufacturer warranty
·Efficiency:>68% @ full load ,nominal line
·The continuous total output power is 450W max
·The combined power of +5V and +3.3V is 245W max
·Remote ON/OFF:TTL High/PS OFF,TTL Low /PS ON
·PG delay :100-500 msec ;PF delay:>1msec
·Hold-up time:16 msec（minimum） @ full load
·Transient Overshoot:10% max w/20% load change
·Rise Time:20msec （maximum） @ full load
·Power up Time:800 msec （maximum） @ full load
·Over？power protection :150% max of rated output
·Over voltage protection on +5V ,+12V,and +3.3V
·Short circuit protection on all output
·Mechanical Dimension: Wx Lx H = 150x140x86mm/5.90x5.51x3.39 inch
系統規格：
·450W 6 outputs ,AC passivity PFC Input design
·Meet Intel ATX 2.01/ATX 2.03/ATX 12V/EPS
·Operating temperature range from 0℃ to 50℃？？？
·Build in DC remote ON/OFF, PG/PF TTL signal
·Build in long life ball bearing fan
·Build in thermal fan speed for noisy reduction
·Complies with FCC class B,Cispr Pub.22,EN55022 CLASS B and CE？ requirements
·MTBF 100KHRS @ 25℃ per MIL-HDBK-217F
·3 years manufacturer warranty
·Efficiency:>68% @ full load ,nominal line
·The continuous total output power is 450W max
·The combined power of +5V and +3.3V is 245W max
·Remote ON/OFF:TTL High/PS OFF,TTL Low /PS ON
·PG delay :100-500 msec ;PF delay:>1msec
·Hold-up time:16 msec（minimum） @ full load
·Transient Overshoot:10% max w/20% load change
·Rise Time:20msec （maximum） @ full load
·Power up Time:800 msec （maximum） @ full load
·Over？power protection :150% max of rated output
·Over voltage protection on +5V ,+12V,and +3.3V
·Short circuit protection on all output
·Mechanical Dimension: Wx Lx H = 150x140x86mm/5.90x5.51x3.39 inch
